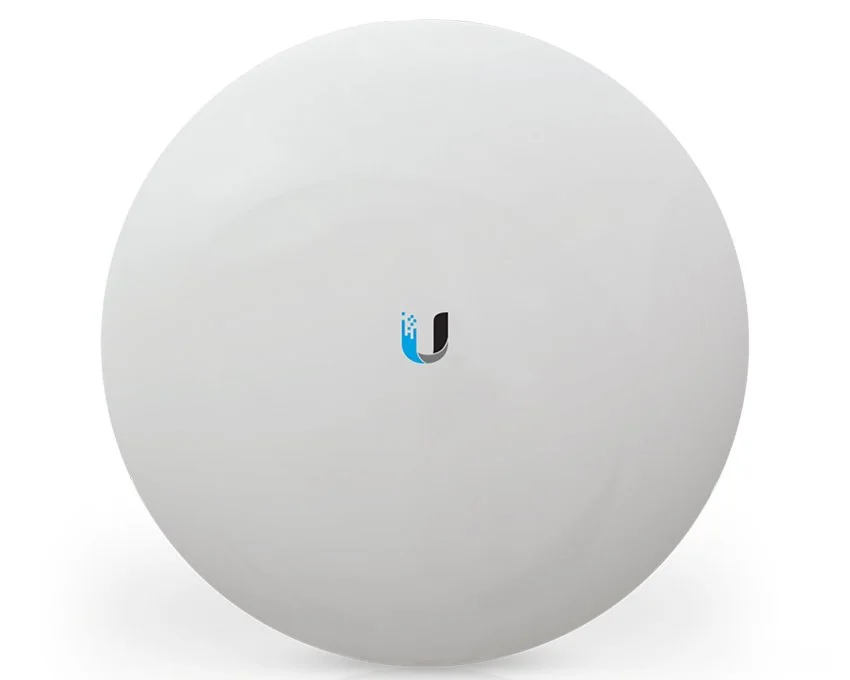

Ubiquiti NanoBeam 5AC Gen2 - NBE-5AC-Gen2 The Ubiquiti NanoBeam AC Gen2 is an airMAX CPE (Customer Premises Equipment) which is ideal for CPE deployments requiring maximum performance from the smallest possible footprint. Ubiquiti NanoBeam AC Gen2 Key Features Frequency 5 Ghz Throughput 450+ Mbps Range 15+ km Improved Wide Bandwidth Antenna Dedicated Wi-Fi Radio for Management airMAX ac Processor for Superior Performance Improved Noise Immunity The Ubiquiti NanoBeam AC Gen2 directs RF energy in a tighter beam width. With the focus in one direction, the NanoBeam AC Gen2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Integrated Design The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam AC Gen2 gets maximum gain out of the smallest footprint. Providing high performance and an innovative form factor, the NanoBeam AC Gen2 is versatile and cost effective to deploy. General Dimensions 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73") Weight Without Mount 800 g (1.76 lb)With Mount 980 g (2.16 lb)Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)Max. Power Consumption 7WPower Method Passive PoE (Pairs 4, 5+; 7, 8 Return)Supported Voltage Range 24V 10%Operating Frequency Worldwide2412 - 2462 MHz5150 - 5875 MHz USA: U-NII-1 5150 - 5250 MHz USA: U-NII-2A5250 - 5350 MHz USA: U-NII-2C5470 - 5725 MHz USA: U-NII-35725 - 5850 MHz Gain 23 dBi Networking Interface (1) 10/100/1000 Ethernet Port Processor Specs MIPS 74KcMemory 64 MB DDR2LEDs Power, Ethernet Channel Sizes PtP Mode PtMP Mode10/20/30/40/50/60/80 MHz 10/20/30/40 MHz Enclosure Characteristics Reflector (SGCC 0.6T) / Plastic: PC Mounting Pole-Mounting Kit (Included)Wind Loading 275 N @ 200 km/h (61.8 lbf @ 125 mph)Wind Survivability 200 km/h (125 mph)ESD/EMP Protection 24 kV Contact / Air Operating Temperature -40 to 70 C (-40 to 158 F)Operating Humidity 5 to 95% Noncondensing Certifications CE, FCC, IC
